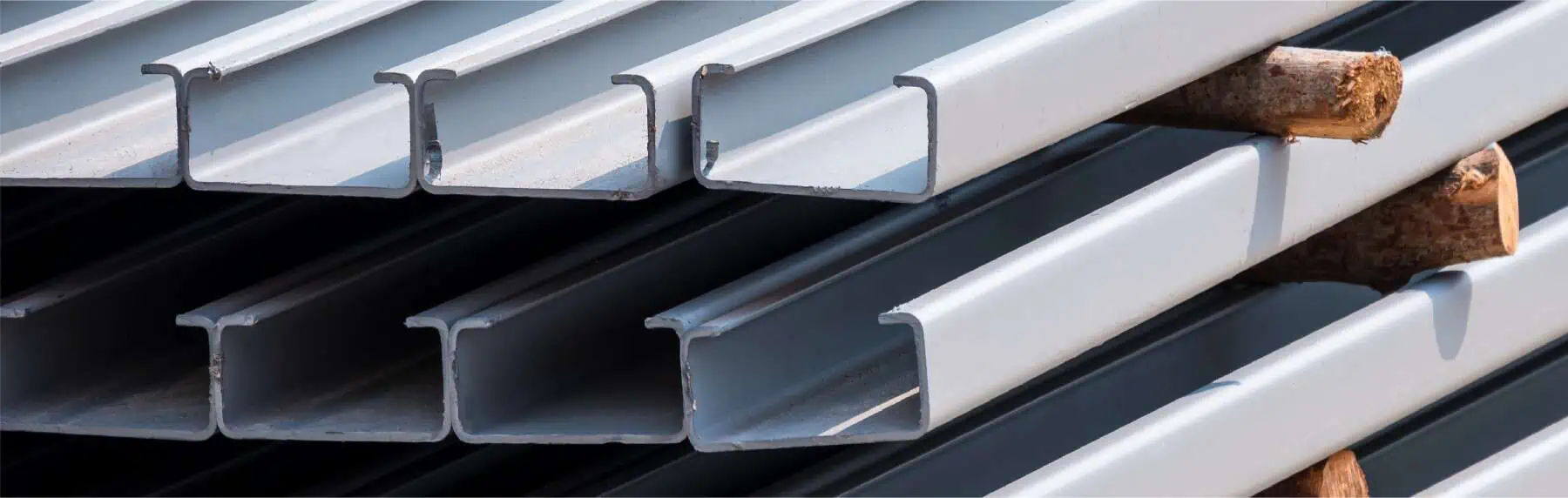

PURLINS
CUT TO CUSTOM LENGTH

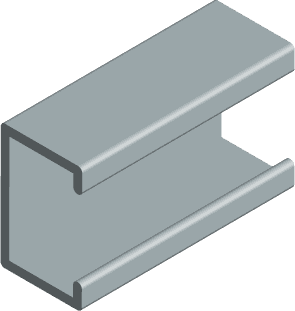

CEE & ZEE PURLIN / RECEIVER CHANNEL
LBS. X L/FT.
SIZE
12 GA.
14 GA.
16 GA.
4”x2”
3.09
2.13
1.82
6”X2”
3.78
2.61
2.23
8” X 2.5"
4.81
3.32
2.84
8” X 3.5”
5.5
3.8
3.24
10” X 2.5”
5.5
3.8
3.24
10” X 3.5”
3.19
4.27
3.65

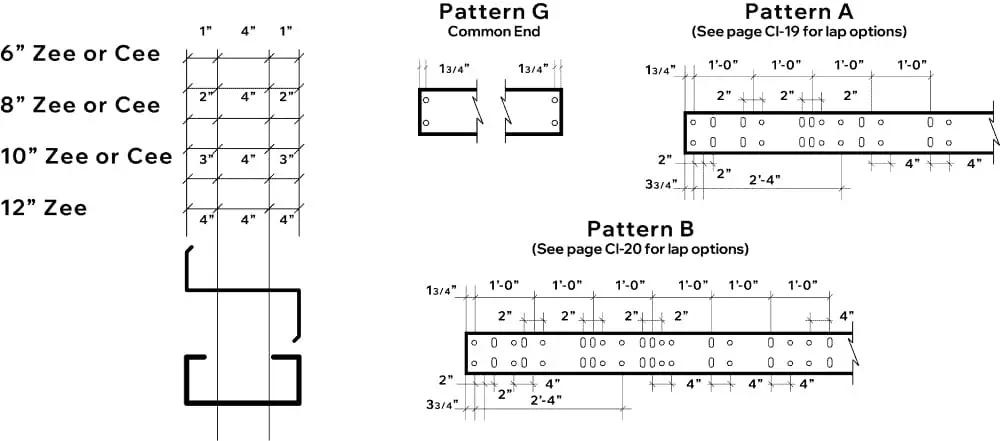

PUNCHING PATTERNS FOR CEES AND ZEES
AVAILABLE IN RED PRIMER OR GALVANIZED
AVAILABLE IN RED PRIMER OR GALVANIZED
Customized orders can be manufactured at any length with punches in Red Primer or Galvanized.

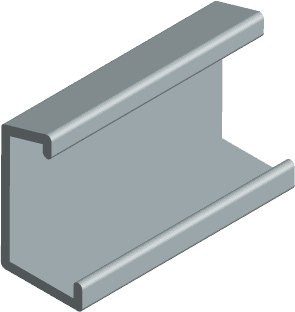

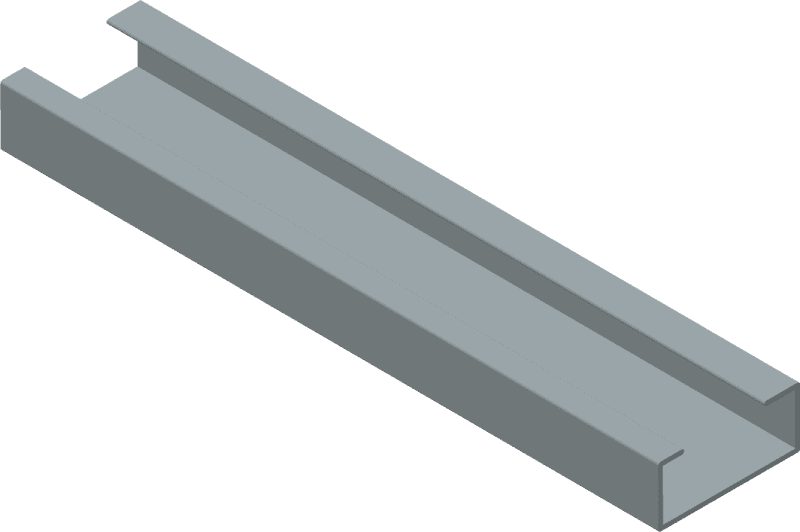

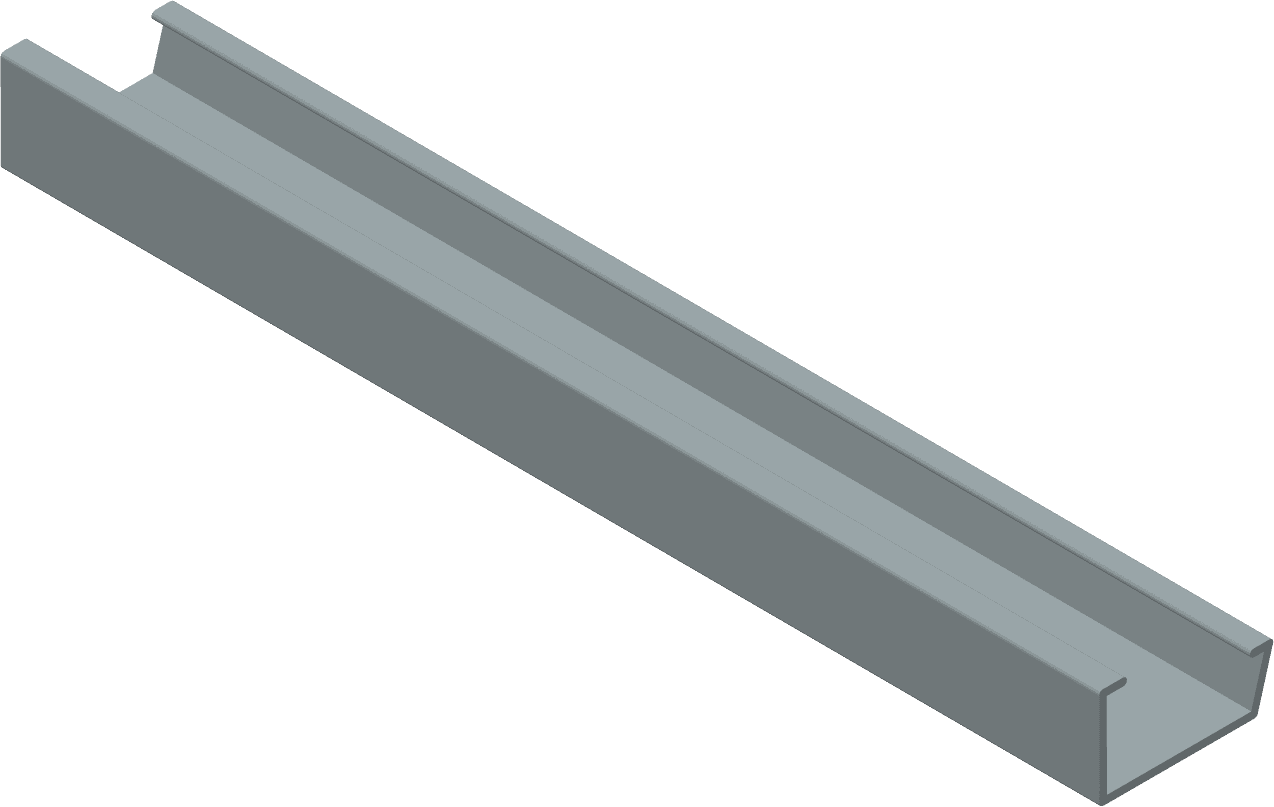

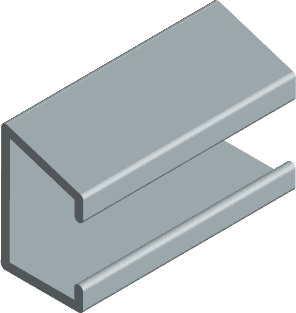

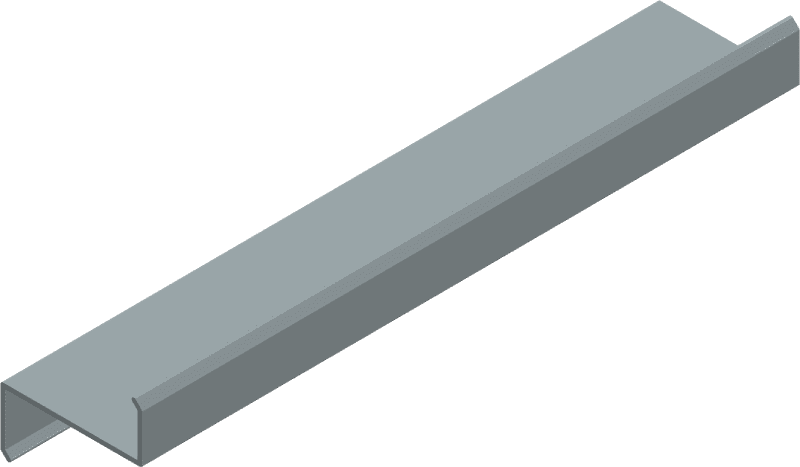

C PURLIN
PURLIN 14 GA. IN STOCK
4″ X 2″
20’
25’
30’
6″ X 2″
20’
25’
30’
8″ X 2″
20’
25’
30’
AVAILABLE IN RED PRIMER OR GALVANIZED
Z PURLIN
PURLIN 14 GA. IN STOCK
4″ X 2″
21’
21’
31’
6″ X 2″
21’
21’
31’
8″ X 2.5″
21’
21’
31’
AVAILABLE IN RED PRIMER OR GALVANIZED
EAVE STRUTS
METAL BUILDING AND ROOFING COMPONENTS
EAVE STRUT
EAVE STRUT 14 GA. IN STOCK (8”X 5” 23/4″)
8” X 5” 23/4″
20’
25’
30’
In Stock available only in Red Primer.
Customized orders can be manufactured at any length with punches in Red Primer or Galvanized.
Low Eave Double Slope
High Eave Double Slope
Low Eave Single Slope
High Eave Single Slope
