PANELS
METAL BUILDING AND ROOFING COMPONENTS

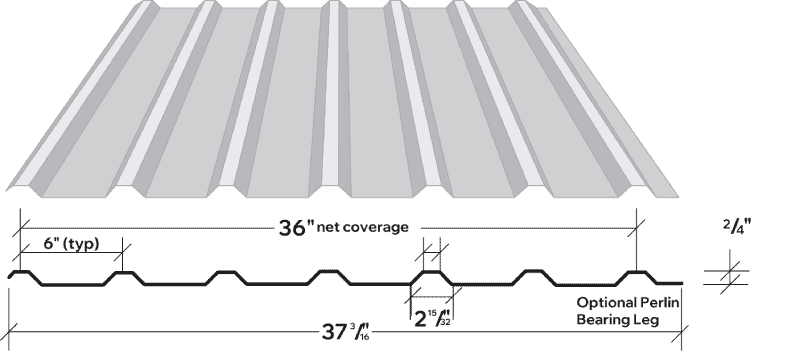

U / PBU PANEL
FEATURES AND BENEFITS:
▪ Colors available on standard and premium.
▪ UL Construction Number: TGKX.12, TGKX.39.
▪ Uplift resistance of prepared roof-covering materials UL 580 Class90.
▪ Impact resistance of prepared roof-covering materials UL2218 Class 4.
▪ Fire tests of roof coverings UL 790. Class A, B, C. External fire exposure.
PRODUCT SPECIFICATIONS
• Applications: Roof and Wall
• Coverage Widths: 36″ wall, 36″ roof
• Rib Spacing: 6″ on center
• Rib Height: ¾”
• Slope: Minimum 1:12
• Coverage Widths: 36″ wall, 36″ roof
• Rib Spacing: 6″ on center
• Rib Height: ¾”
• Slope: Minimum 1:12
• Panel Attachment: Exposed Fastening System
• Gauges: 26 (Standard); 29, 24, 22 (Optional)
• Coatings: Acrylic Galvalume Plus And Premium colors (Cool Roof)
• Gauges: 26 (Standard); 29, 24, 22 (Optional)
• Coatings: Acrylic Galvalume Plus And Premium colors (Cool Roof)
R / PBR PANEL
FEATURES AND BENEFITS:
▪ Colors available on standard and premium.
▪ UL Construction Number: TGKX.12, TGKX.39.
▪ Uplift resistance of prepared roof-covering materials UL 580 Class90.
▪ Impact resistance of prepared roof-covering materials UL2218 Class 4.
▪ Fire tests of roof coverings UL 790. Class A, B, C. External fire exposure.
PRODUCT SPECIFICATIONS
• Applications: Roof and Wall
• Coverage Widths: 36″
• Rib Spacing: 12″ on center
• Rib Height: 1 1/4”
• Slope: Minimum 1/2:12
• Coverage Widths: 36″
• Rib Spacing: 12″ on center
• Rib Height: 1 1/4”
• Slope: Minimum 1/2:12
• Panel Attachment: Exposed Fastening System
• Gauges: 26 (Standard); 29, 24, 22 (Optional)
• Coatings: Acrylic Galvalume Plus And Premium colors (Cool Roof)
• Gauges: 26 (Standard); 29, 24, 22 (Optional)
• Coatings: Acrylic Galvalume Plus And Premium colors (Cool Roof)
